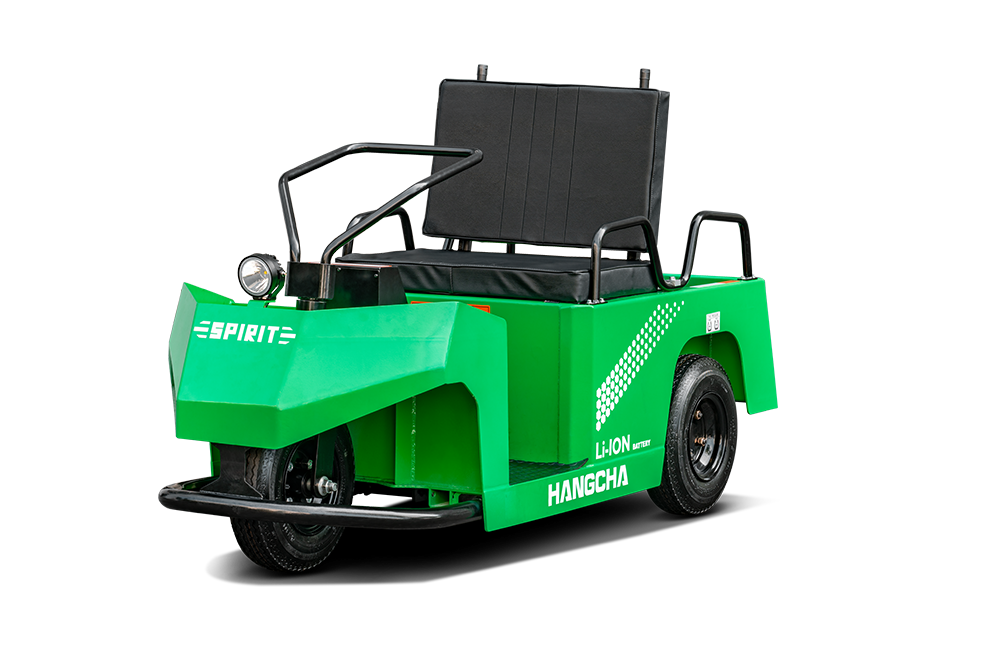

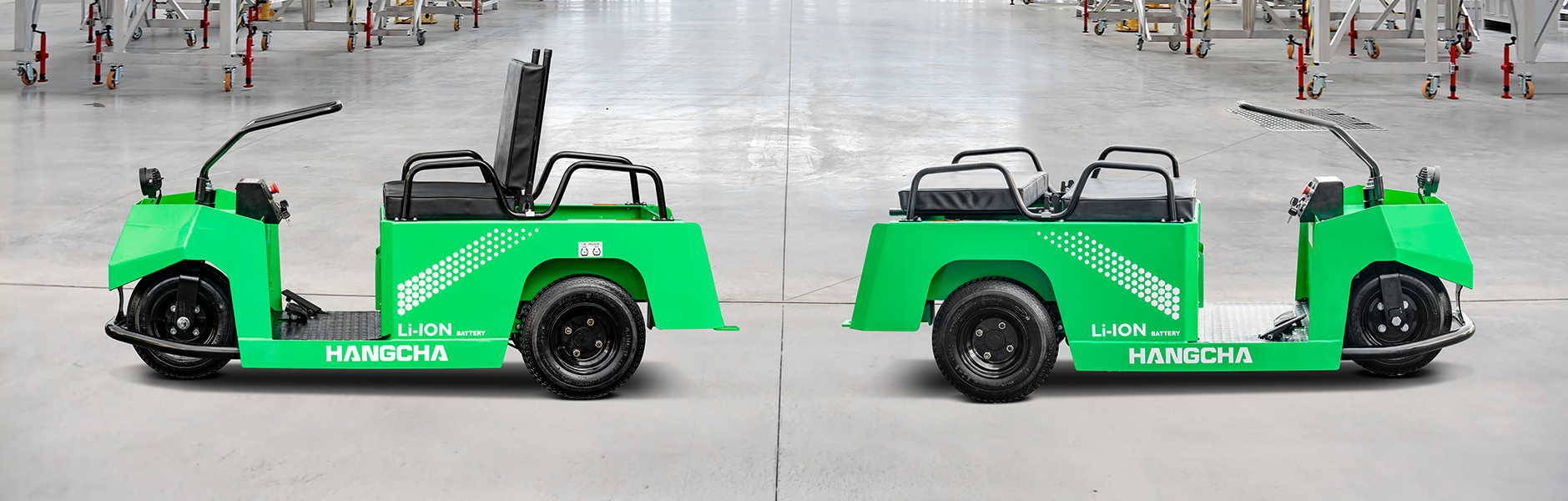

48V XC Series Electric Lithium-ion Personnel Carrier

770lb Load Capacity / 4,850lb Tow Capacity

The XC Series Electric Lithium-Ion Personnel Carrier with a 770lb load/ 4,850lb tow capacity is a new model from Hangcha Group that allows end-users to make the switch from traditional 24V lead-acid personnel carriers to Hangcha’s powerful and efficient 48V integrated lithium-ion personnel carrier. The new XC Series Electric Lithium-Ion Personnel Carrier is perfect for moving goods, transporting up to two people, and towing materials in applications such as manufacturing facilities, warehouses, and convention centers.

- Powerful AC Traction Motor
- Curtis Controller
- Lithium-ion Battery Pack
- Pneumatic Tires

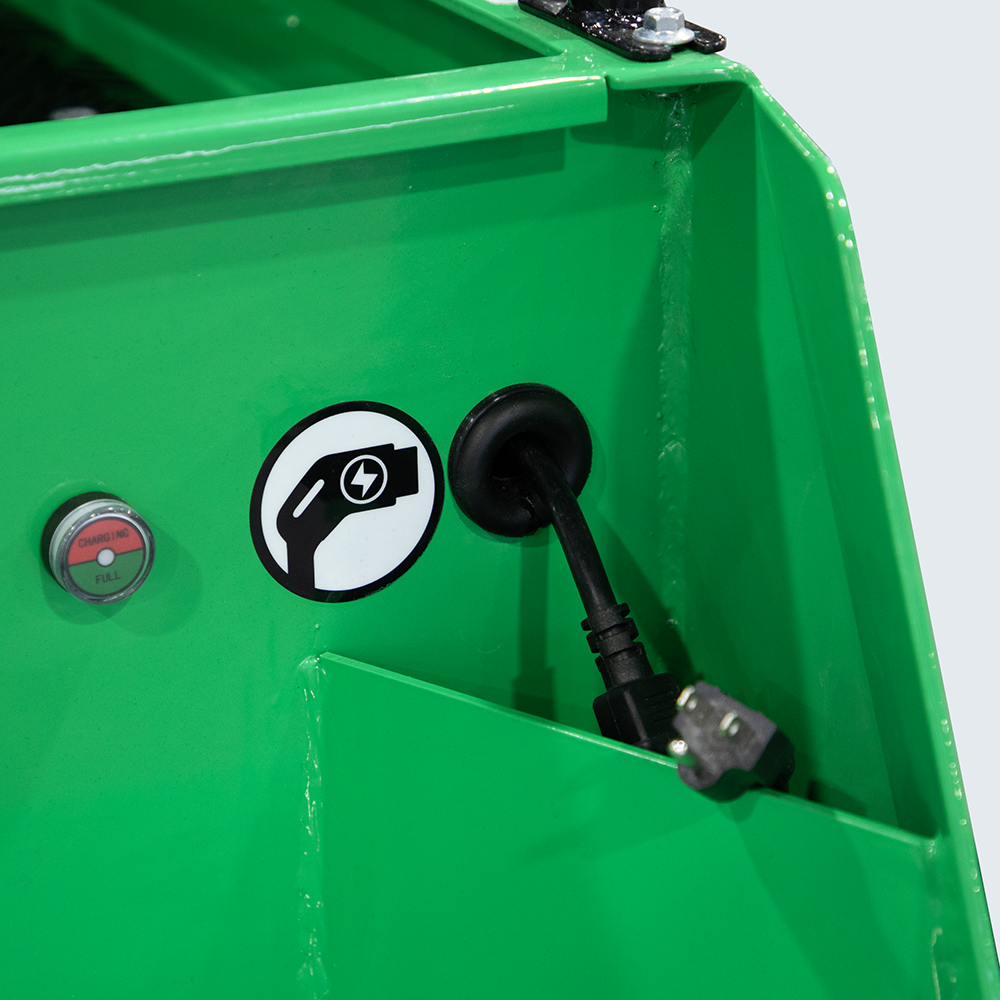

- Built-In Charger

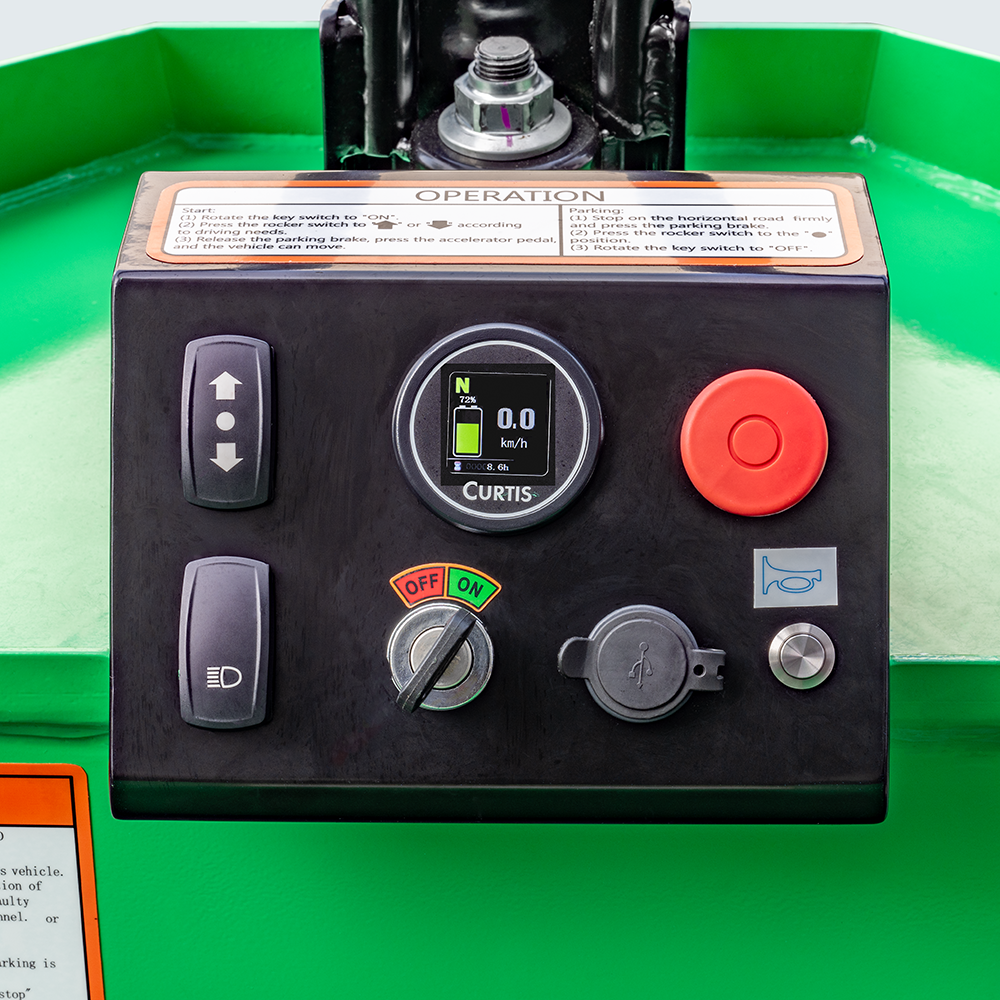

- Multi-Function Instrument Cluster
- Integral Rubber Pedal Pad
- Three-Wheel Support (Single Front Steering Tire)
- Front Anti-Collision Bar
- Emergency Cut-Off Switch
- USB Port
- Electric Horn
- Reverse Alarm
- Mechanical Parking Handbrake
- Operator Presence Sensing System (OPS)
- Brake Pedal with Integrated Parking Brake
- LED Headlight
- LED Combination Taillight
- Suspended Rear Wheel Drive Axle
- Clipboard
- Cupholder
- Foldable Back Rest
- Checkered Aluminum Plate Cargo Platform
- Tow Pin Seat
The XC Series Electric Lithium-ion Personnel Carrier has a smooth vivid profile and was designed to be ergonomic. The exterior of this tow tractor is powder coated in a durable, easy-to-see, green finish that designates it as lithium-ion powered.

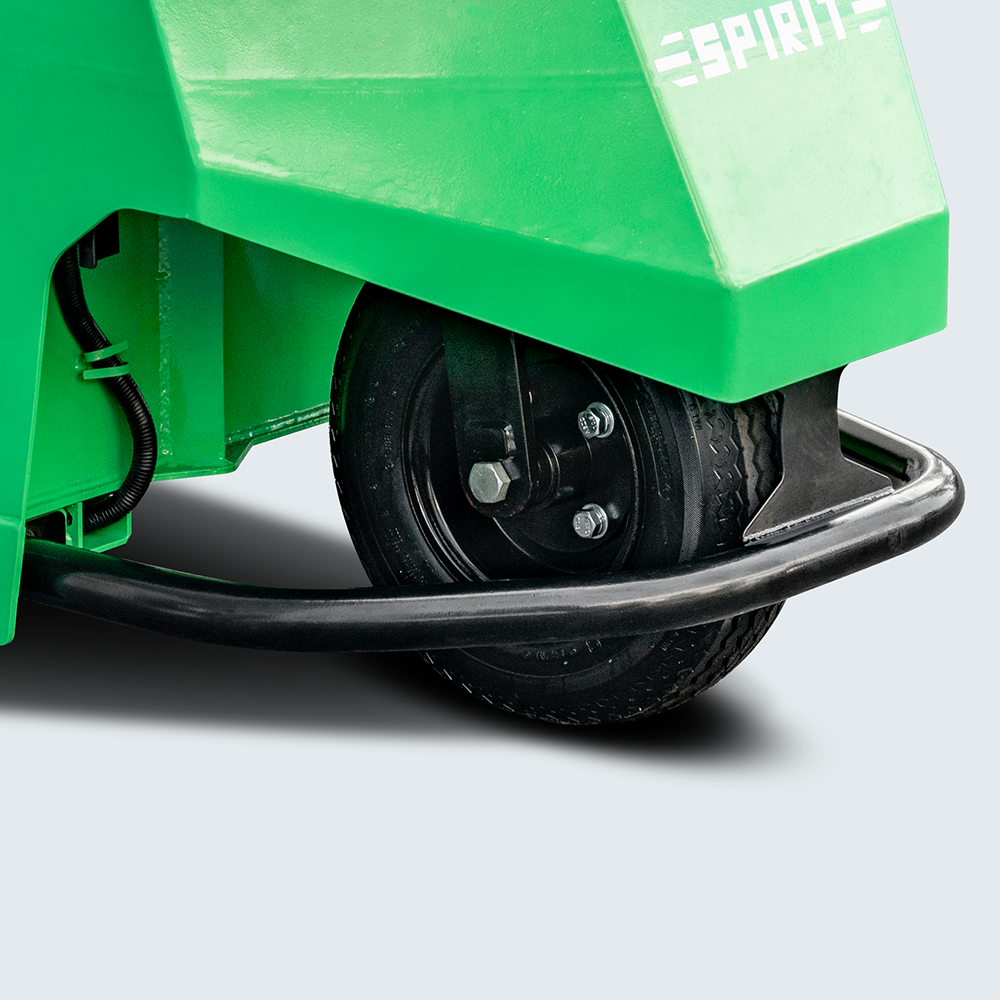

- The XC Series Electric Lithium-ion Personnel Carrier features a front anti-collision bar. This protects the front wheel from being hit and prevents items from getting tangled up underneath the personnel carrier.
- This personnel carrier features an Operator Presence Sensing (OPS) System to ensure that it is safe and unintentional movements of the personnel carrier won’t occur.
- The XC Series Electric Lithium-ion Personnel Carrier features armrests for the front and back seats to provide the operator and passenger with effective support and ensure their safety.
- Thanks to the electric lithium-ion design, the only maintenance required during the life cycle of the personnel carrier is to refill/change the lubricating oil.
- The bottom cushion and cover can easily be removed to inspect and service the transmission and the electrical system.
- The XC Series Electric Lithium-ion Personnel Carrier features an AC brushless drive motor and AC controller for increased performance and reliability. The drive motor also allows the personnel carrier to have regenerative braking and an anti-skidding function.
