HS1416TP
HS1416TP

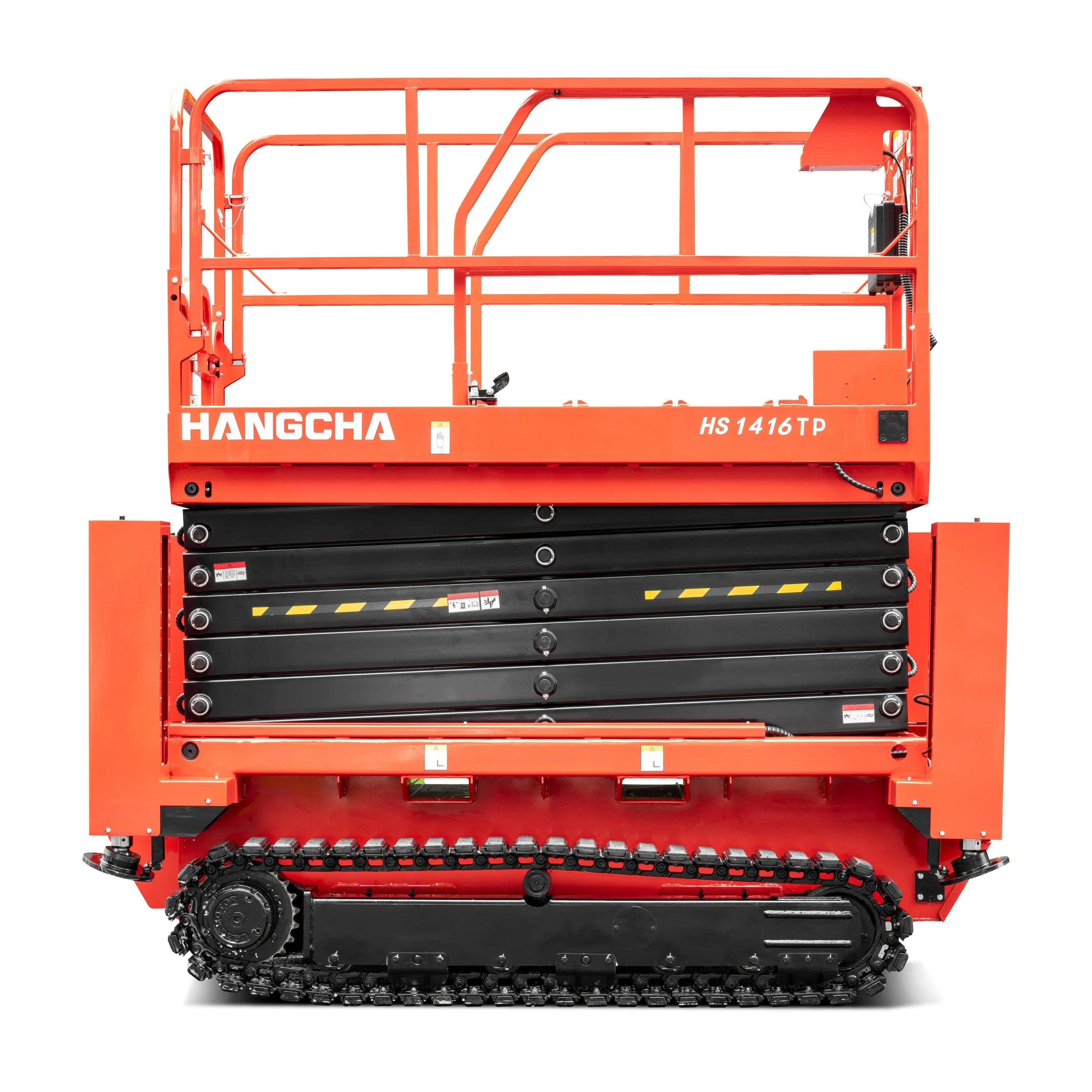

Hangcha HS1416TP is a rugged crawler scissor lift delivering 13.8 m working height and 320 kg platform capacity.
The machine is moving by the crawler, it has high friction coefficient and high driving strength. Fully sealed permanent magnet synchronous drive motor, it makes fast walking speed, strong power and high efficiency.
Scissor Lift Specifications
| Maximum Working Height | 13.8 m |
| Maximum Platform Height | 11.8 m |
| Overall Length | 2.78 m |
| Overall Width | 1.6 m |
| Height (Guardrail Unfolded) | 2.78 m |
| Height (Guardrail Folded) | 2.24 m |
| Platform Size | 2.27 × 1.14 m |
| Extended Platform Length | 0.9 m |
| Ground Clearance | 0.13 m |
| Wheel Base | — |
| Maximum Load Capacity | 320 kg |
| Extended Platform Load Capacity | 113 kg |
| Maximum Workers (Indoor / Outdoor) | 2 / 1 |
| Turning Radius | Pivot Steering |
| Drive Speed (Transport Mode) | 2 km/h |
| Drive Speed (Working Mode) | 0 km/h |
| Maximum Slope Rating | 30% |
| Drive / Steering | 2 × 2 |
| Maximum Allowable Inclination | 1.5° / 3° |
| Tyre Type | 230 Steel Rubber Crawler |
| Battery | 80V / 105Ah Lithium |
| Charger | 80V / 20A |
| Machine Weight | 3,740 kg |
| Outriggers | Yes |
