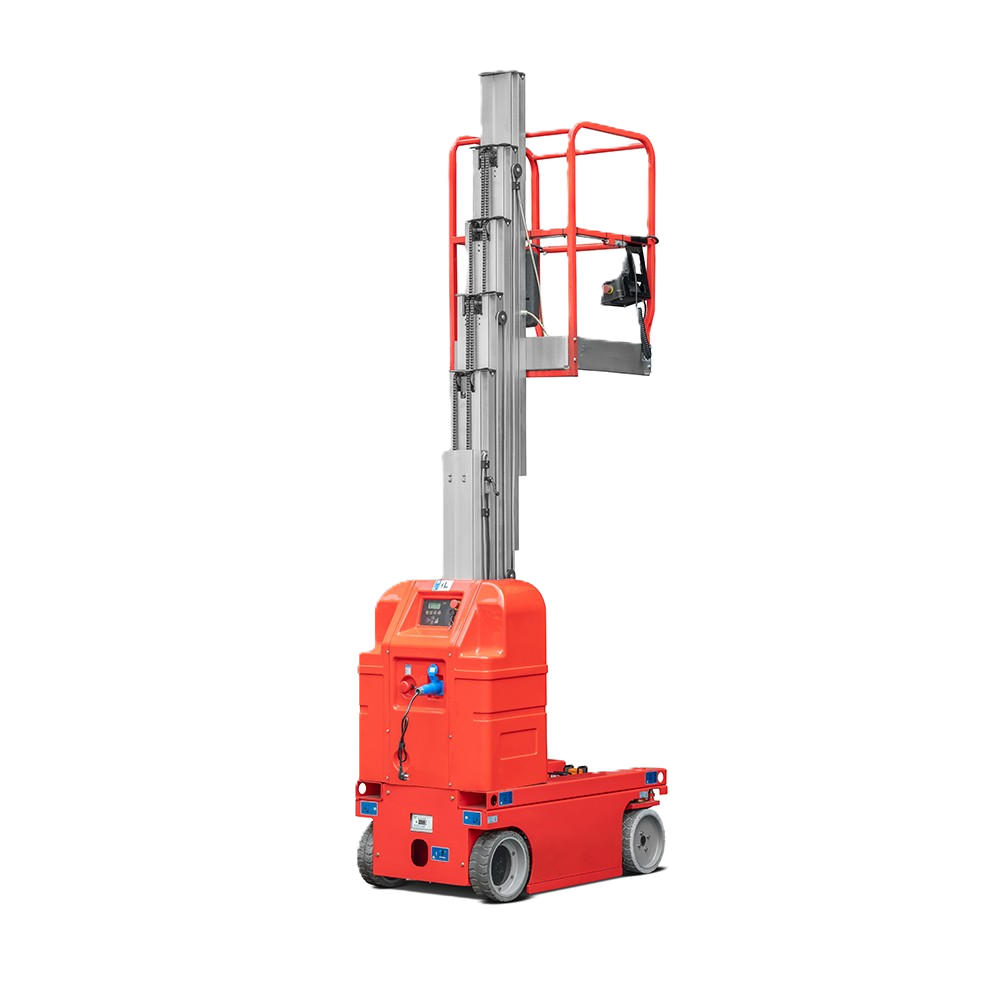

HV Series Vertical Mast Lift

The HV Series Vertical Mast Lift is a compact, self-propelled lift built for indoor tasks like warehouse maintenance, installations, and facility servicing. It’s designed for tight maneuverability, with a small turning radius and the ability to drive while fully elevated.

Key Features

Height Range: 5.6 m up to 14 m (depending on model).

Capacity: 125 kg to 227 kg (enough for one worker plus tools).

Mobility: Easy to operate in narrow aisles and crowded spaces.

Safety Systems: Tilt alarms, emergency stop & lowering, cylinder-holding valves, onboard diagnostics, and non-marking tires.

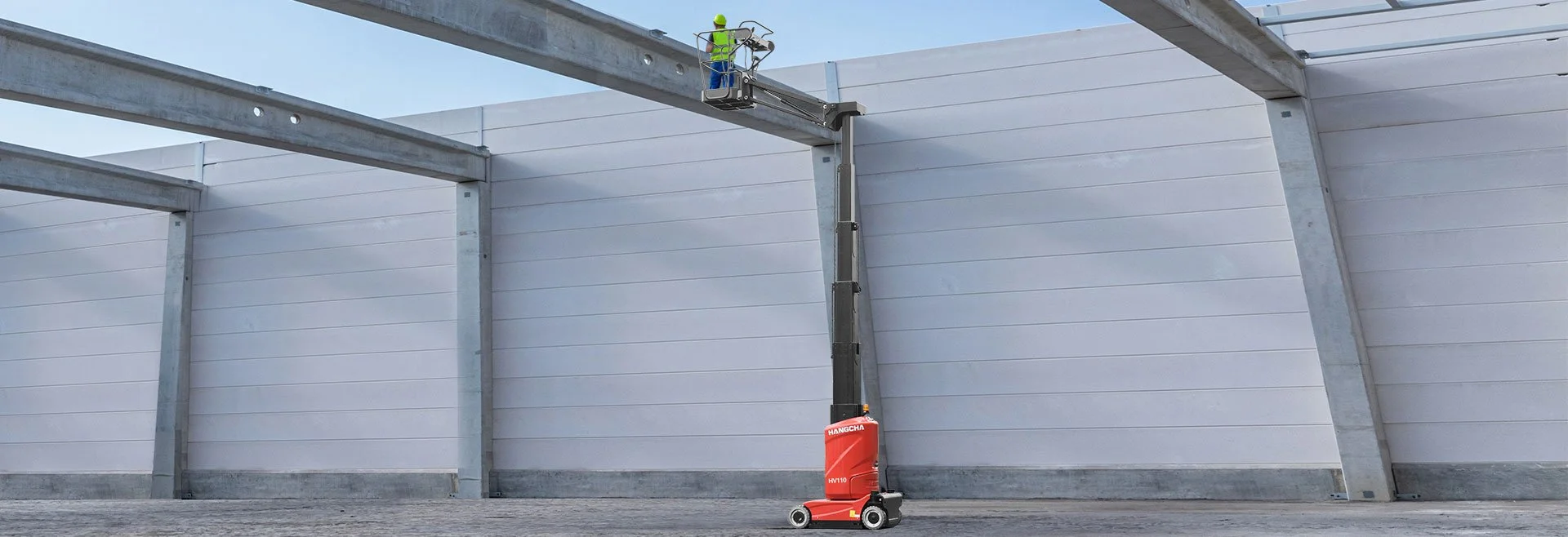

Control: Smooth proportional controls, CAN-BUS electronic system, and leveling bubbles for accuracy.. It has the characteristics of compact body size, small turning radius, good handling performance and strong endurance. It is mainly used in warehouse, exhibition hall, aircraft maintenance, mechanical equipment installation, equipment maintenance and other fields.

Load Capcity

150–227 kg

Lift Height

5.6–14.0 m

Drive Types

Lead Acid Battery

HV Series Vertical Mast Lift Specs

            Model ↕
            Max Working Height ↕
            Capacity ↕
            Weight ↕

            HV60D
            5.6 m
            227 kg
            810 kg

            HV70D
            6.8 m
            227 kg
            980 kg

            HV80D
            8 m
            159 kg
            1 060 kg

            HV80D-LC
            8 m
            150 kg
            1 120 kg

            HV95D-LC
            9.5 m
            125 kg
            1 190 kg
