AC/AC-Li Series Scissor Lifts

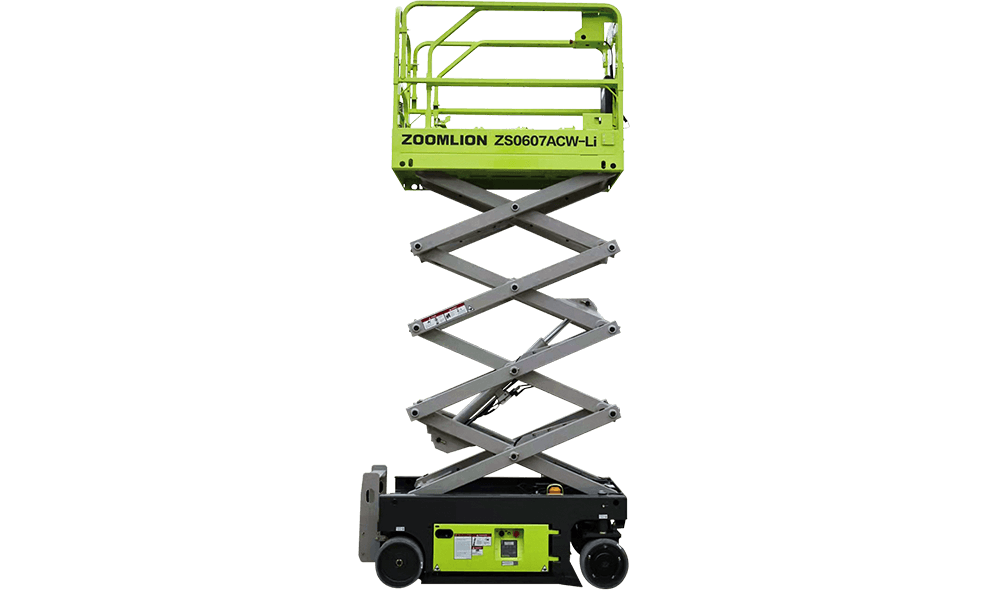

ZS0607ACW-Li

AC/AC-Li Series Scissor Lifts

ZS0607ACW-Li

  • Electric-powered scissor lifts with working heights 7.8m, delivering high efficiency and safe operation across job sites.

    High Performance

    • The AC system delivers higher working efficiency.

    • IP67-rated waterproof protection on the AC wheel motors ensures a longer lifespan.

    • Lithium-ion batteries provide a long service life, increase runtime by up to 30%, and can operate in cold working conditions down to -20°C.

    Cost Effectiveness

    • Lubrication-free knuckles reduce maintenance requirements.

    • The AC motor is maintenance-free throughout its full lifecycle.

    • The swing-out tray allows for easy servicing and maintenance.

    Intelligent Connectivity

    • The Battery Management System (BMS) and machine control system provide dual-layer protection.

Weight

1620 kg

Work Height

7.8 m

Drive Types

Electric

Size

Work Height
7.8m
A - Platform Height-Elevated
5.8m
B - Platform Height-Stowed
1.05m
C - Platform Length
1.65m
D - Platform Width
0.74m
Platform Extension
0.91m
E - Overall Height (Rails Up)
2.20m
Overall Height (Rails Down)
1.79m
F - Overall Length
1.85m
G - Overall Width
0.81m
H - Wheelbase
1.37m
I - Ground Clearance (Stowed)
0.06m
J - Ground Clearance (Raised)
0.016m

Performance

Platform Capacity
230kg
Capacity on Deck Extension
113kg
Max. Number of Workers
2/1
Drive Speed (Stowed)
4km/h
Drive Speed (Raised)
0.8km/h
Turning Radius (Inside)
0.1m
Turning Radius (Outside)
1.6m
Lifting Motor
24V/3.3KW
Drive Motor
24V/0.65KW
Up/Down Time
20s/24s
Gradeability
25% (14°)
Max. Working Slope (Lateral/Vertical)
1.5°/3°
Control
Proportional Control
Drive
Front Wheels
Brake
Front Wheels
Tire
ф323mm × 100mm

Power

Battery
135Ah Li-ion
Charger
24V/30A
Charger (Option)
-

Weight

Gross
1620kg

Size

Work Height
25ft 7in
A - Platform Height-Elevated
19ft
B - Platform Height-Stowed
3ft 5in
C - Platform Length
5ft 5in
D - Platform Width
2ft 5in
Platform Extension
3ft
E - Overall Height (Rails Up)
7ft 3in
Overall Height (Rails Down)
5ft 10in
F - Overall Length
6ft 1in
G - Overall Width
2ft 8in
H - Wheelbase
4ft 6in
I - Ground Clearance (Stowed)
2.4in
J - Ground Clearance (Raised)
0.65in

Performance

Platform Capacity
510lb
Capacity on Deck Extension
250lb
Max. Number of Workers
2/1
Drive Speed (Stowed)
2.5mph
Drive Speed (Raised)
0.5mph
Turning Radius (Inside)
4in
Turning Radius (Outside)
5ft 3in
Lifting Motor
24V/3.3KW
Drive Motor
24V/0.65KW
Up/Down Time
20s/24s
Gradeability
25% (14°)
Max. Working Slope (Lateral/Vertical)
1.5°/3°
Control
Proportional Control
Drive
Front Wheels
Brake
Front Wheels
Tire
ф13in × 4in

Power

Battery
135Ah Li-ion
Charger
24V/30A
Charger (Option)
-

Weight

Gross
3570lb
