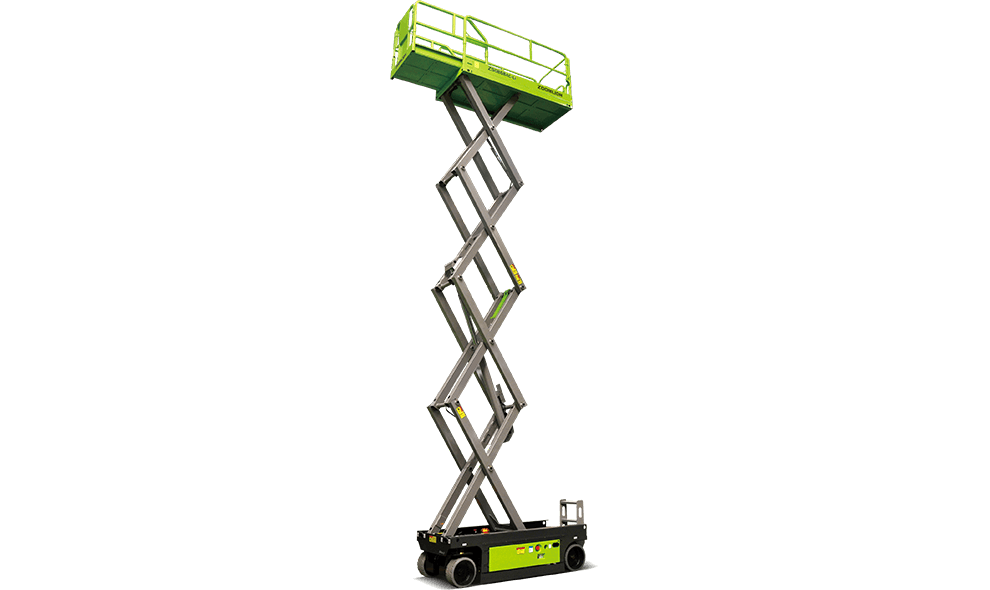

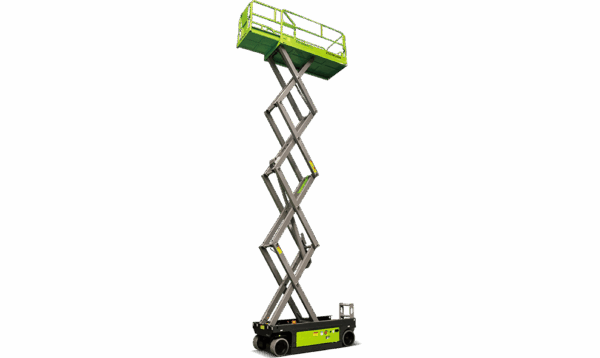

AC/AC-Li Series Scissor Lifts

ZS0808AC-Li

Units:

Size

Work Height: 10.00m / 7.8m
A - Platform Height-Elevated: 8.00m / 5.8m
B - Platform Height-Stowed: 1.26m
C - Platform Length: 2.30m
D - Platform Width: 0.81m

Performance

Platform Capacity: 230kg
Drive Speed (Stowed): 4km/h
Up/Down Time: 31s / 40s
Turning Radius (Outside): 2.1m

Power

Battery: 135Ah Li-ion
Charger: 24V/30A

Weight

Gross: 2090kg

Size

Work Height: 32ft 10in / 25ft 7in
A - Platform Height-Elevated: 26ft 3in / 19ft

Performance

Platform Capacity: 510lb
Drive Speed (Stowed): 2.5mph

Power

Battery: 135Ah Li-ion

Weight

Gross: 4610lb

AC/AC-Li Series Scissor Lifts

ZS0808AC-Li

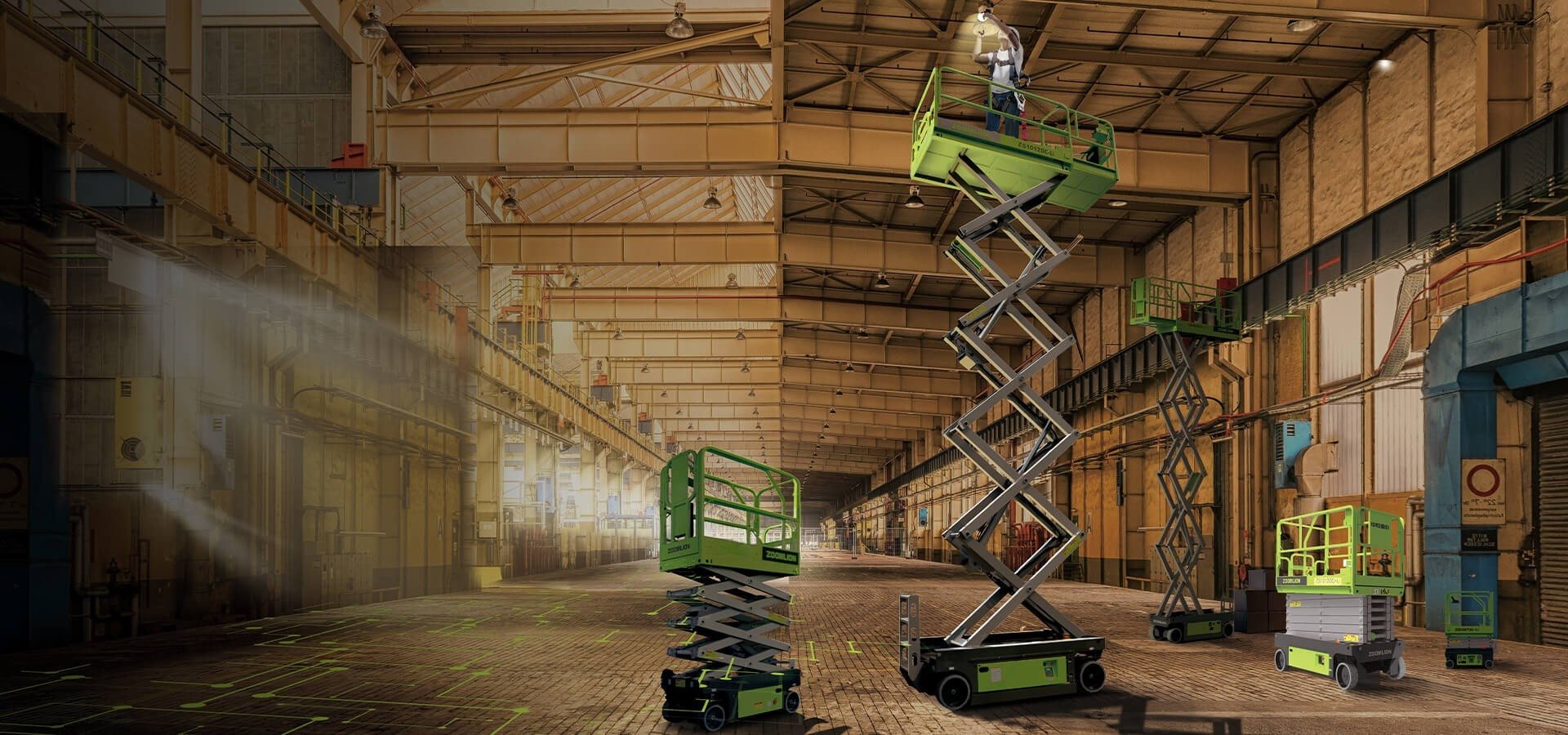

  • Electric-powered scissor lifts with working heights 8m, delivering high efficiency and safe operation across job sites.

    High Performance

    • The AC system delivers higher working efficiency.

    • IP67-rated waterproof protection on the AC wheel motors ensures a longer lifespan.

    • Lithium-ion batteries provide a long service life, increase runtime by up to 30%, and can operate in cold working conditions down to -20°C.

    Cost Effectiveness

    • Lubrication-free knuckles reduce maintenance requirements.

    • The AC motor is maintenance-free throughout its full lifecycle.

    • The swing-out tray allows for easy servicing and maintenance.

    Intelligent Connectivity

    • The Battery Management System (BMS) and machine control system provide dual-layer protection.

Weight

2090 kg

Work Height

8 m

Drive Types

Electric
